Automatic Pix
Status definition
Stage | Status | Description |
|---|---|---|
Process initiation and user authorization | STARTED | Authorization process initiated |
| CONSENT_AWAITING_AUTHORIZATION | The system is waiting for the user to authorize the payment request(60 minutes) |
| CONSENT_AUTHORIZED | Authorized Consent(60 minutes) |
| CONSENT_REJECTED | Consent rejected(60 minutes) |
| CONSENT_PARTIALLY_ACCEPTED | Partially authorized consent, waiting for further processing(60 minutes) |
| CONSENT_REVOKED | Consent revoked |
| CONSENT_PERIOD_EXPIRED | Consent has expired |
| EXPIRED | The authorization process has expired after being initiated |
Payment Processing | PAYMENT_PENDING | The payment request has been authorized and is awaiting processing |
| PAYMENT_READY_FOR_SETTLEMENT | The transaction is ready to be sent for settlement |
| PAYMENT_SCHEDULED | Successfully arranged regular transactions |
| PAYMENT_SETTLEMENT_PROCESSING | Payment is being settled |
| PAYMENT_COMPLETED | Payment completed successfully |
| PAYMENT_REJECTED | Payment request rejected or failed |
Abnormal and terminated states | CANCELED | The payment process has been cancelled |
| ERROR | An error occurred during the payment process and the process was terminated |

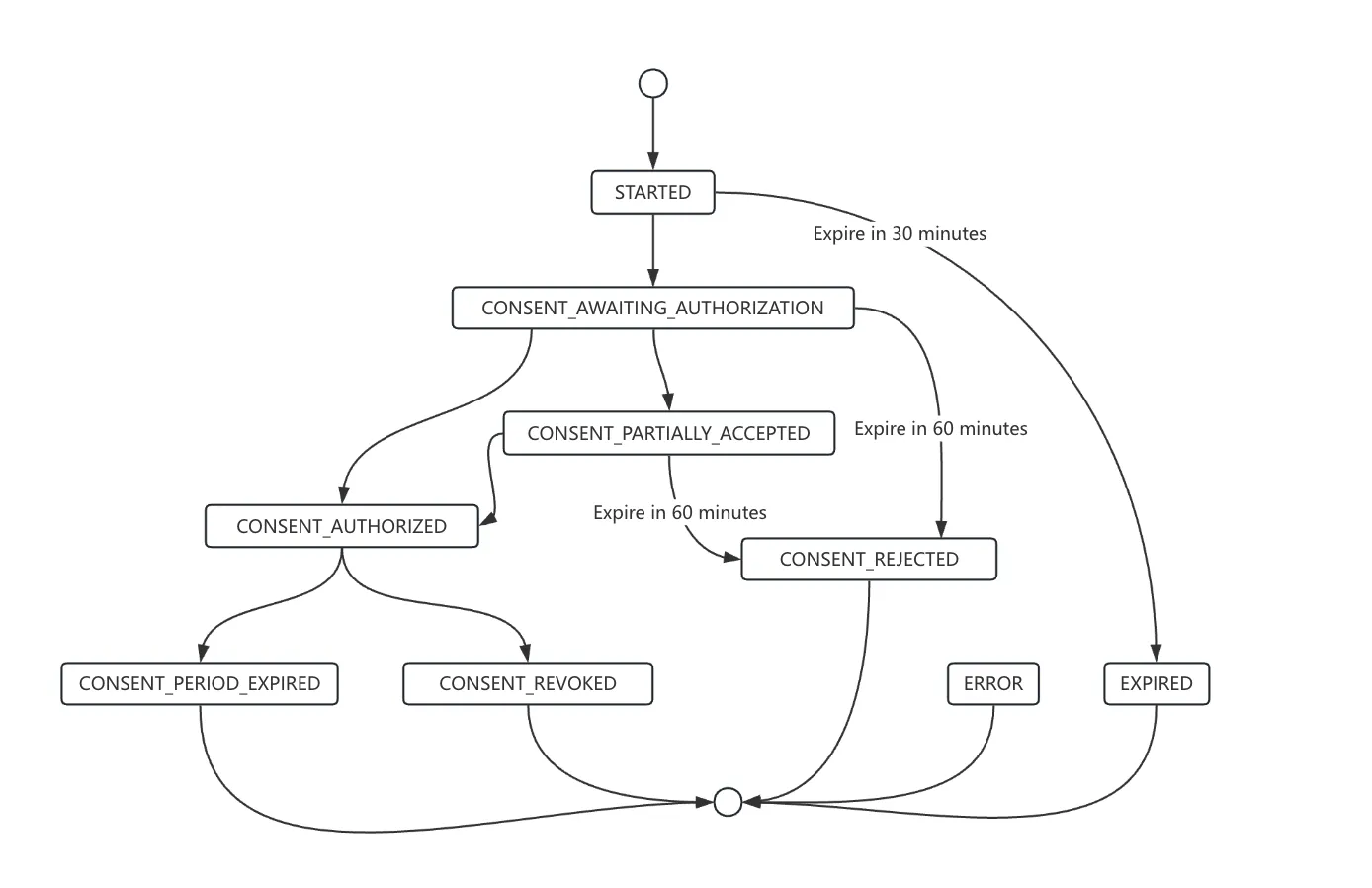

Consent status diagram

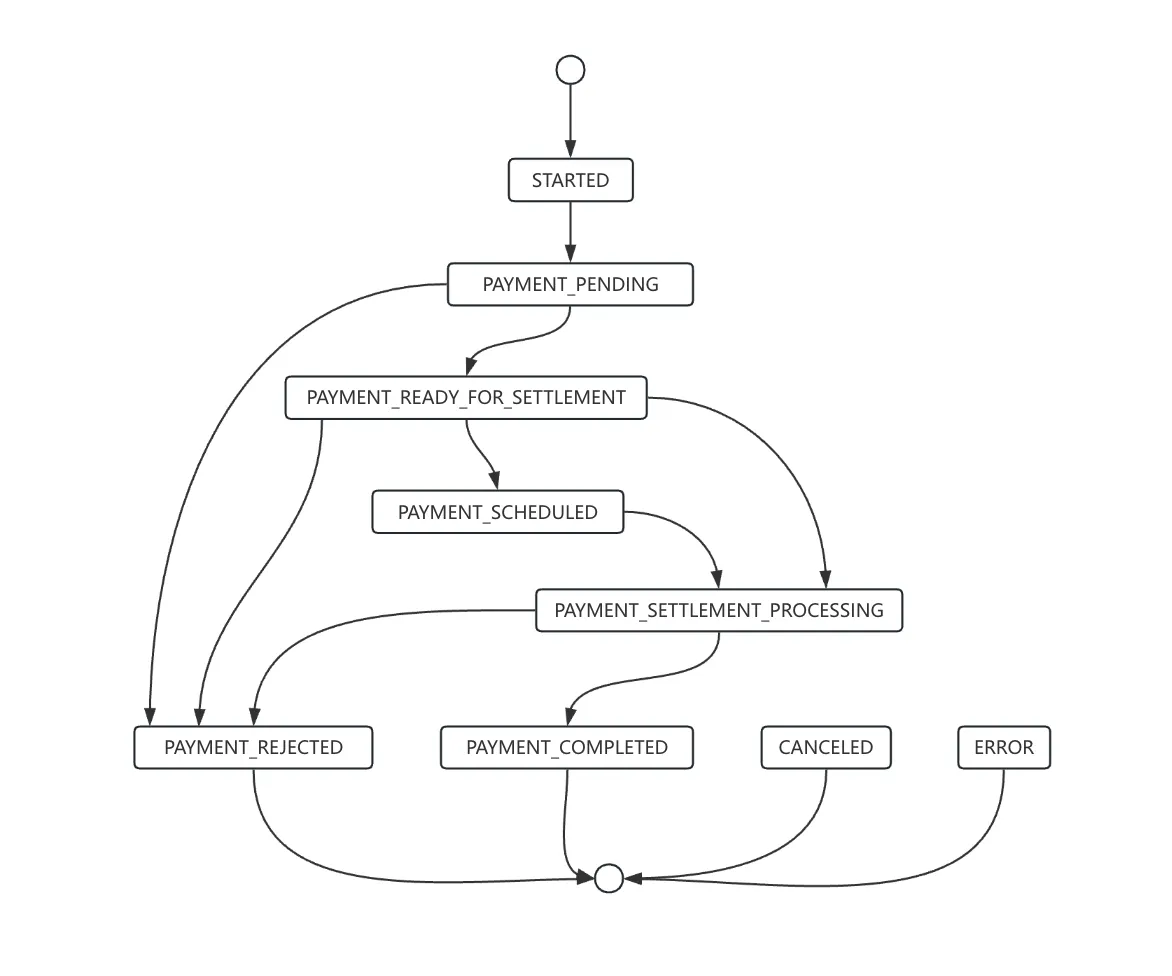

Payment status diagram
